EMP Laser

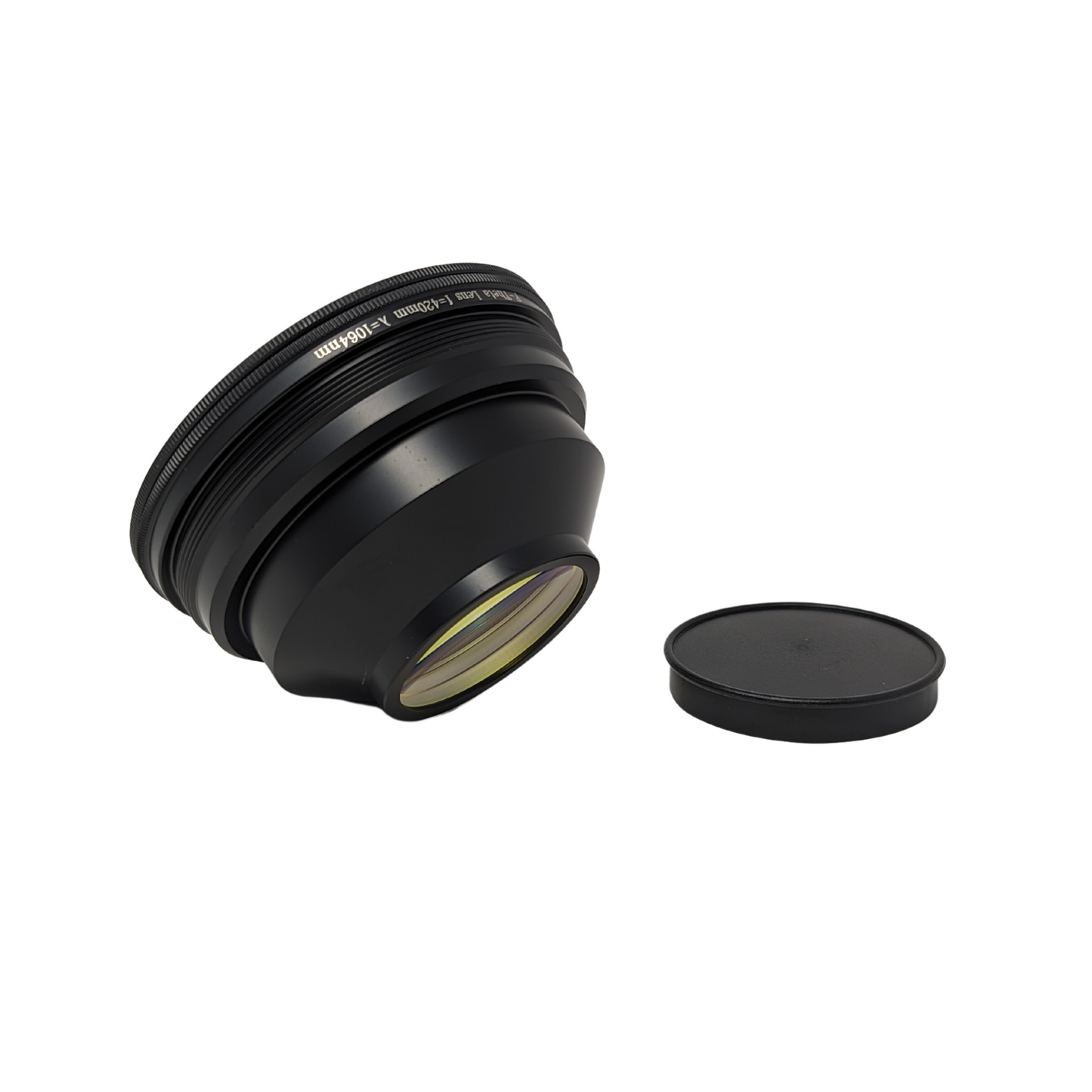

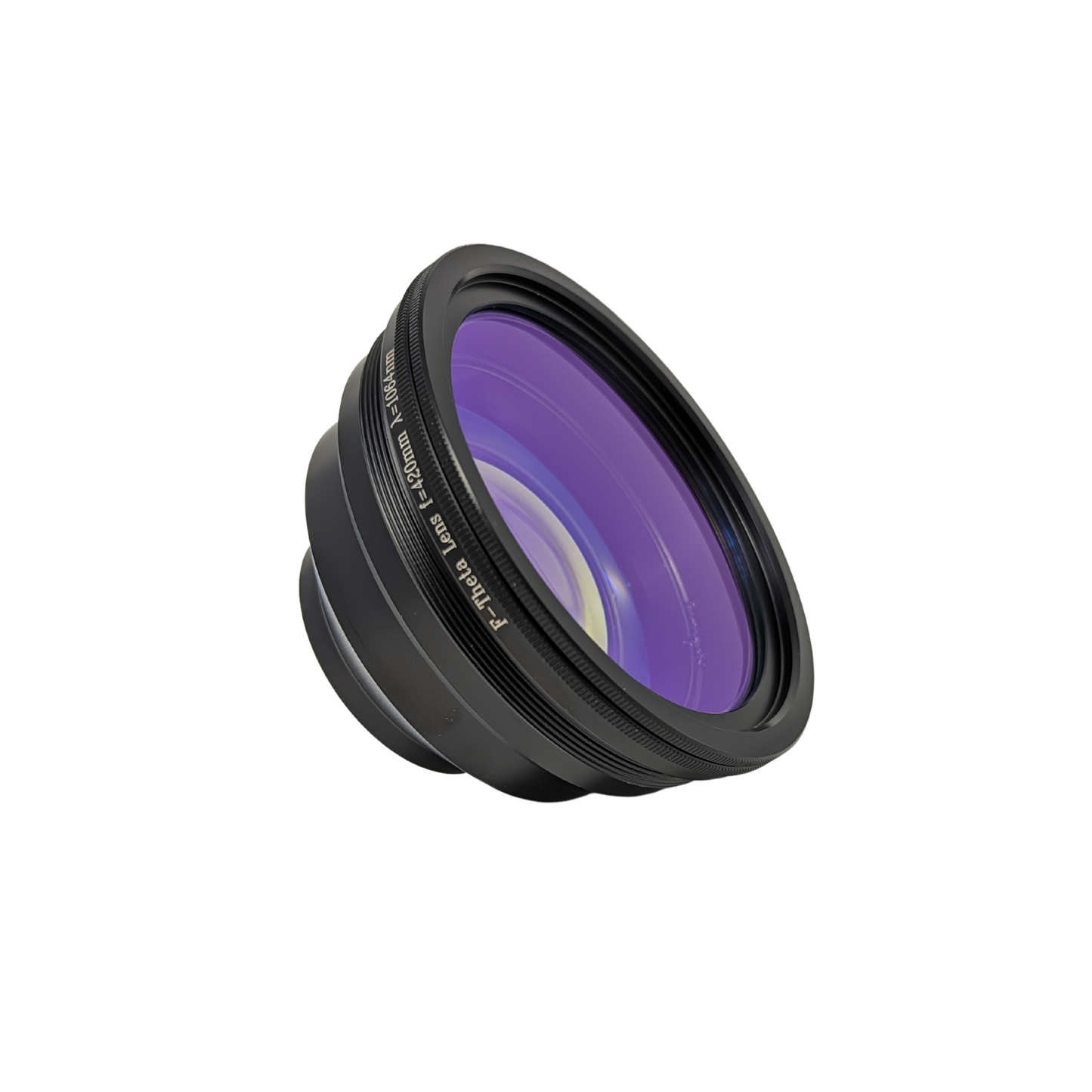

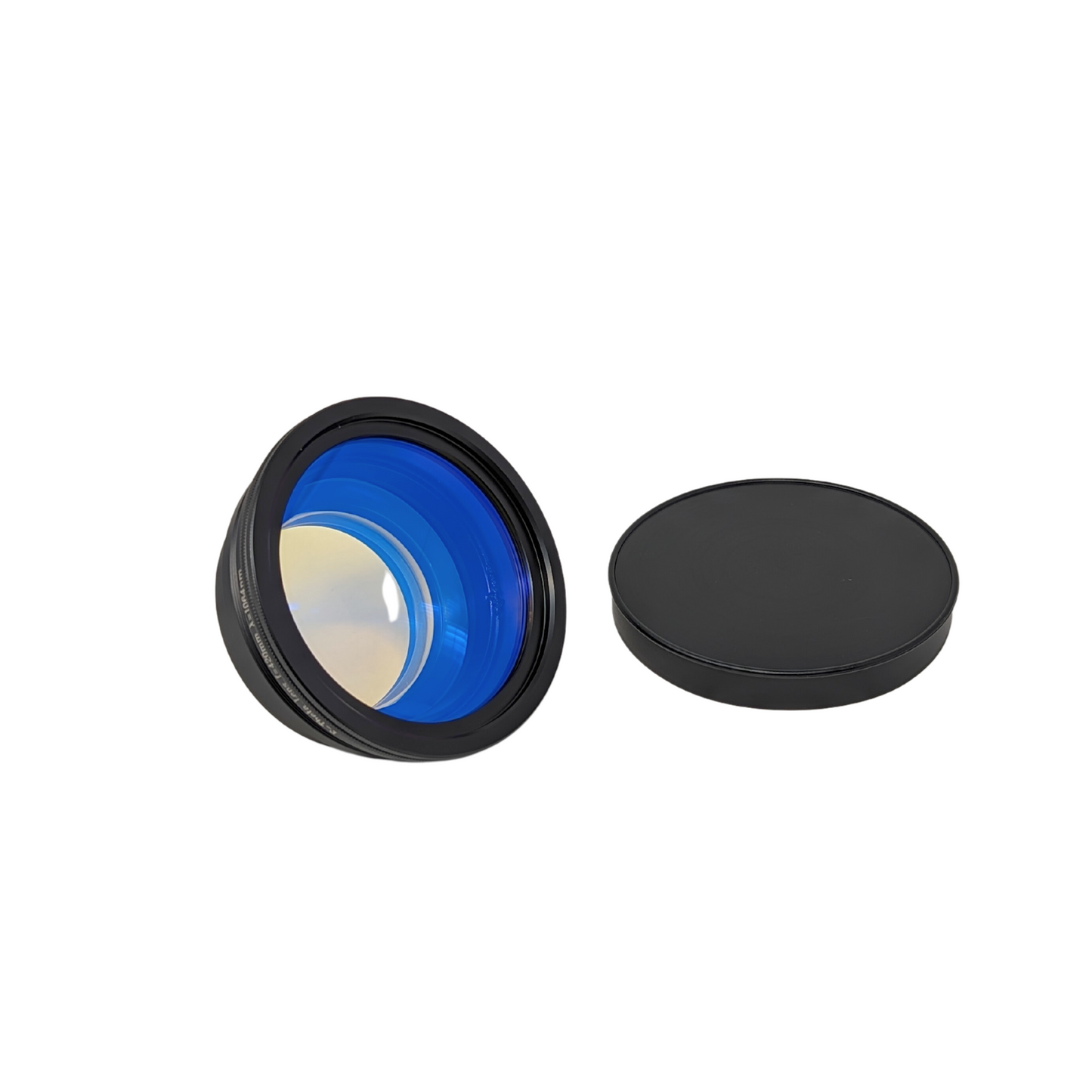

F-theta Lens - 420G
F-theta Lens - 420G
Regular price
$129.00 USD
Regular price
Sale price
$129.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
-
Compatible with all EMP Fiber Laser models
- The 800mm lift table is recommended for full use of focal height. With the standard 500mm lift table, material thickness is limited to 80mm.
- Lens cover included
SPECIFICATIONS:
- Wave Length: 1064
- Focal Length (mm): 420
- Scan Angle: ±28°
- Scan Length: 300mm×300mm
- Entrance Diameter (mm): 12
- Center Point Diameter (um): 70
- Mirror Distance (mm) M1: 13
- Mirror Distance (mm) M2: 10-12
- Thread (mm): M85x1
